How to Setup a VPN

  • October 24, 2022
  • Author: V2 Cloud

Background Image

How to Setup a VPN

VPNs establish a secure connection between themselves and a device, allowing the device to pose as the VPN server to the outside world. Consequently, they are effective in surfing the internet anonymously.

Getting access to a VPN is possible by getting a router with VPN capability, subscribing to a VPN service, or setting up your computer as a VPN server. However, for home business owners, you can set up a VPN on a home computer which can act as a VPN server with little differences.

This quick guide will show you how to set up a VPN on your Windows computer.

What You Need to Know Before You Set Up a VPN

Before you set up a VPN on your Windows computer, there are a few things you have to know about the VPNs and the process itself.

  • Always Online

The computer on which you will set up the VPN server must always be awake. You can check up on this article to keep your computer awake.

  • Geo-restriction

The created VPN server can only mimic its hosting computer’s location. Therefore, connecting to a home VPN server won’t make you access other locations aside from that of the VPN server. However, you can bypass this if you host your VPN server on cloud computing software.

  • Slow speeds

The VPN server’s speed depends on your internet connection. Therefore, it is not a better choice if you have limited bandwidth.

  • Internet Activity

The VPN server will only encrypt the connection itself and your device to protect your data from the public. However, whatever you do online is still visible to your Internet Service Provider.

How to Setup a VPN Server on Windows

Follow the steps below to set up a VPN server on Windows. The steps below were carried out on a Windows 11 computer but are applicable with little to no alteration to Windows 8 and 10.

Step 1: Create a VPN Server

Click the Windows key and type ncpa.cpl to open the Network Connections window

Background Image

Press the Alt key to show the file menu

Under the File menu, click on New Incoming Connection

Background Image

Click on any of the user accounts listed or add a new one by clicking on Add someone

Background Image

Enable the Through the internet option to allow another computer to connect to the host computer using a VPN connection

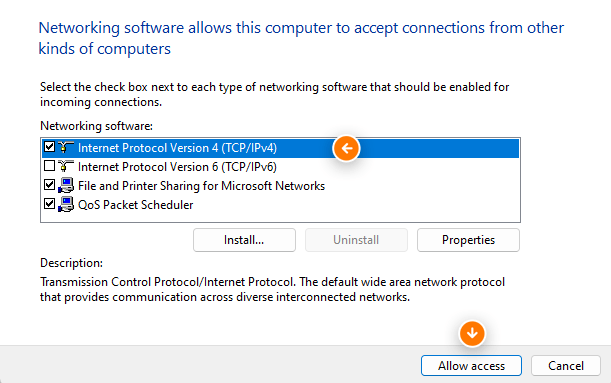

Choose the networking protocols you desire

Wait as Windows creates the VPN service.

Step 2: Setup Port Forwarding

After creating the VPN server, you must ensure that the computer acting as the VPN server can receive a signal from other devices. This is achievable by using port forwarding.

Follow the steps below on how to use port forwarding.

Background ImageBackground Image

Sub-Step 1: Set a static IP for the host computer

Launch the Command Prompt as an administrator

Enter the command ipconfig/all and press Enter

Copy the IPv4 Address, Subnet Mask, Default Gateway, and DNS Servers.

Background Image

Open the Control Panel

Click on Network and Sharing Center

Background Image

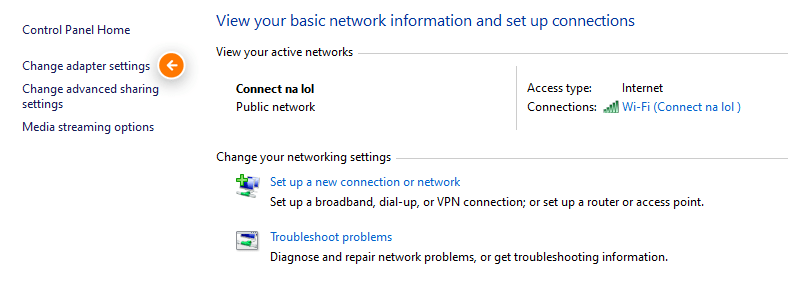

Click on Change Adapter Settings

Right-click on the Adapter (Wi-Fi)

Background ImageBackground Image

Select the Internet Protocol Version 4 (TCP/IPv4) and click on Properties

On the General tab, select Use the following IP address

Enter the copied addresses from Step 1

Click on OK

Sub-step 2: Get the Your Public IP Address

Open your web browser on the computer serving as a VPN server

Under the search bar, enter the keywords What is my IP address

Copy the displayed public IP address

Most times, the public IP address is not static. Therefore, you need to set the DDNS on your router

Login to your router

Under DDNS Configuration, configure the DDNS settings

Sub-Step 3: Configure Router for Port Forwarding

Login to your router and navigate to the port forwarding option

Enable port mapping and set the following

  • Type: Application
  • Mapping Name: VPN Server
  • Internal host: IP address of the computer serving as a VPN server
  • Protocol: TCP
  • Internal port: 3389
  • External port: 3389

Step 3: Connect to the VPN Server

Open the remote computer’s Windows Integrated VPN

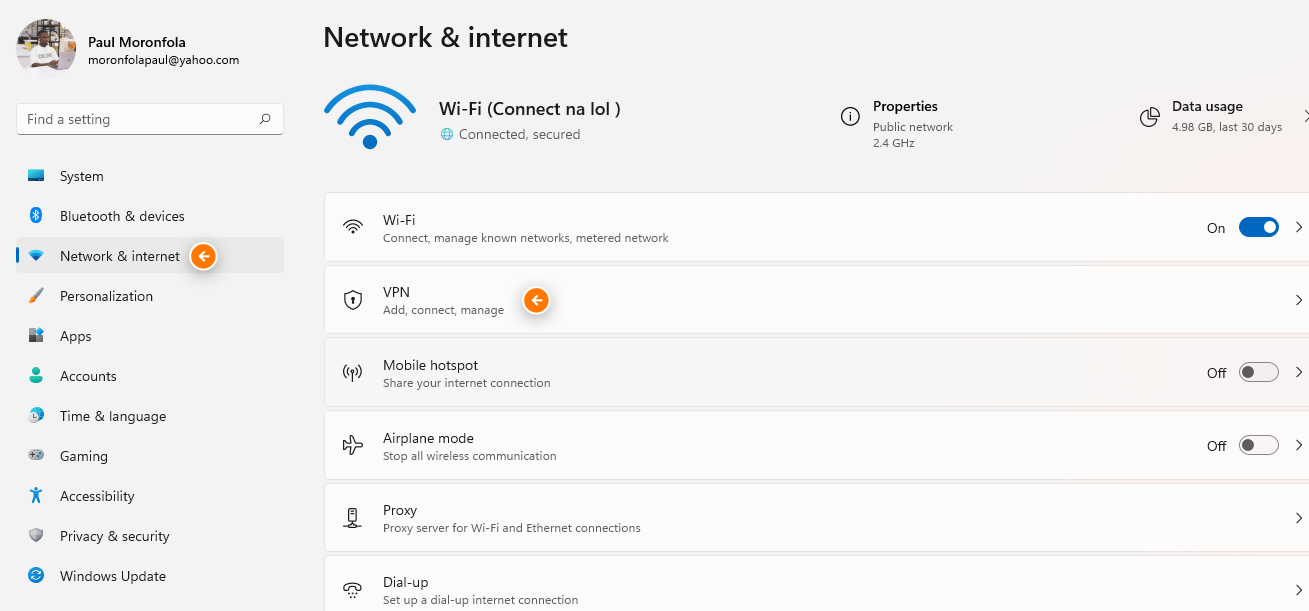

Click on Network & Internet and select VPN

Background Image

Click on Add VPN

Background Image

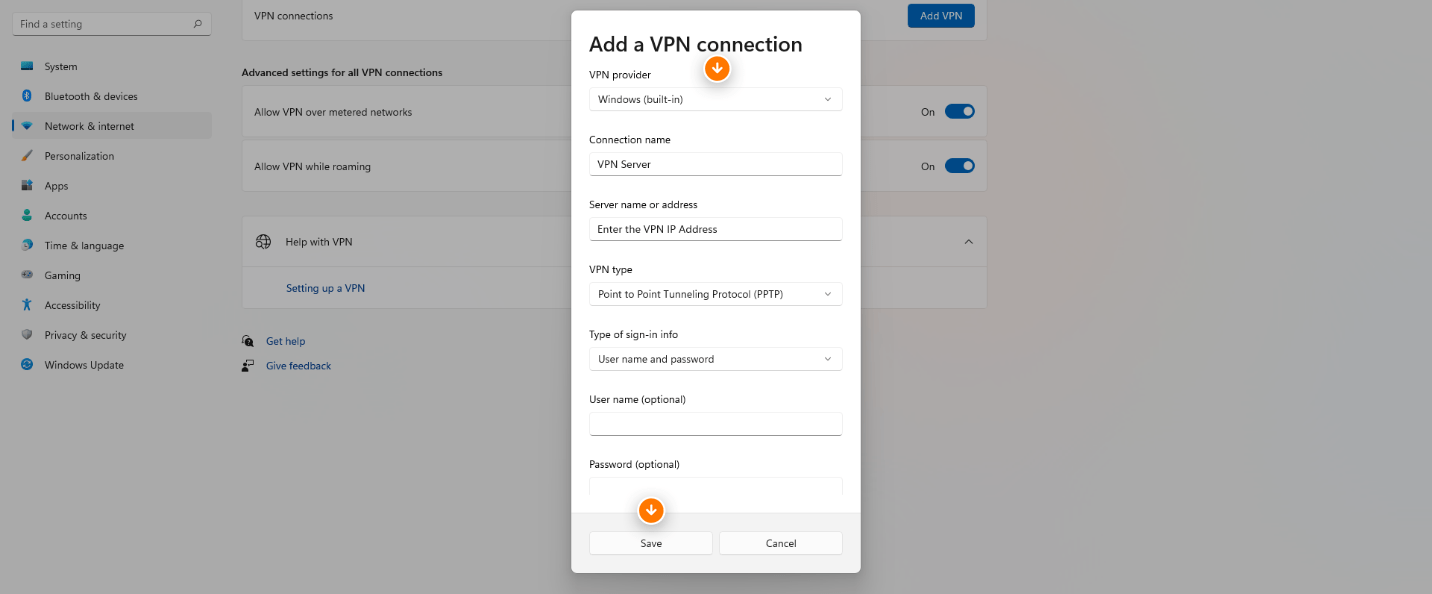

Enter the VPN information and click Save

Background Image

  • VPN Provider: Windows (built-in)
  • Connection name: Your choice
  • Server name/Address: VPN Server IP address
  • VPN Type: PPTP
  • Type of sign-in info: Select your preferred type
  • Then your VPN connection will be listed along with the wi-fi connections.

Use a Cloud Computer Software – V2 Cloud

Using V2 cloud computing software is an easier way to set up a VPN. This will eliminate the need for the host computer to be online, software updates, and server maintenance while providing access to geo-restricted content. Of the many cloud computing software used for setting up a VPN, V2 Cloud offers a safer cloud desktop infrastructure for small and large business owners. With the software, you can easily render Windows software and applications on the cloud, a step necessary to set up the VPN server. Aside from that, V2 Cloud boasts of an unequal user experience and performance, simplicity, and scalability.
