How to use OneLogin with V2 Cloud

  • December 15, 2020
  • Author: V2 Cloud

Background Image

How to use OneLogin SSO
with V2 Cloud

In this tutorial, you will learn how to use OneLogin with V2 Cloud. This is an identity management third party application. Once set up, it allows you to control everything your users can access from a single dashboard.

Create an account on OneLogin.

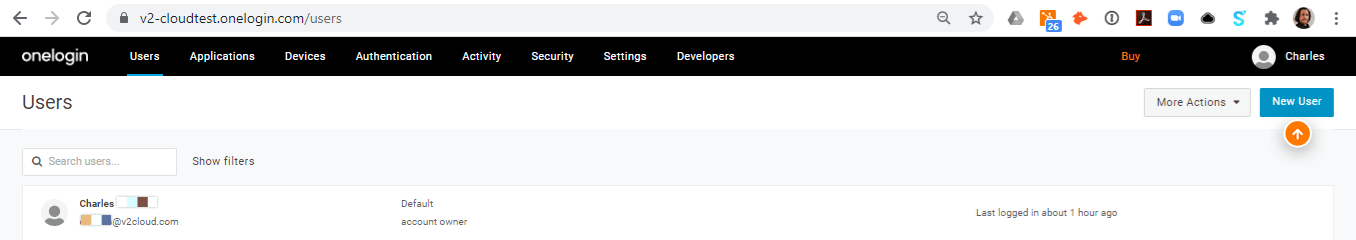

STEP 1

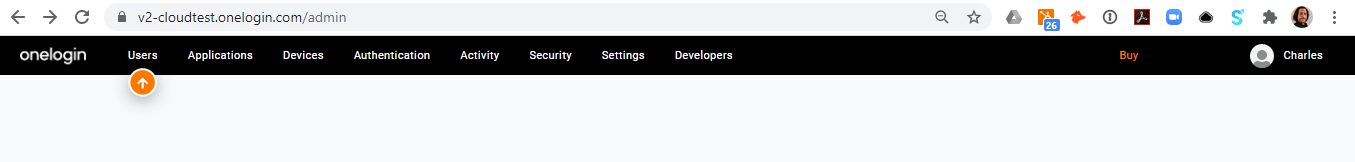

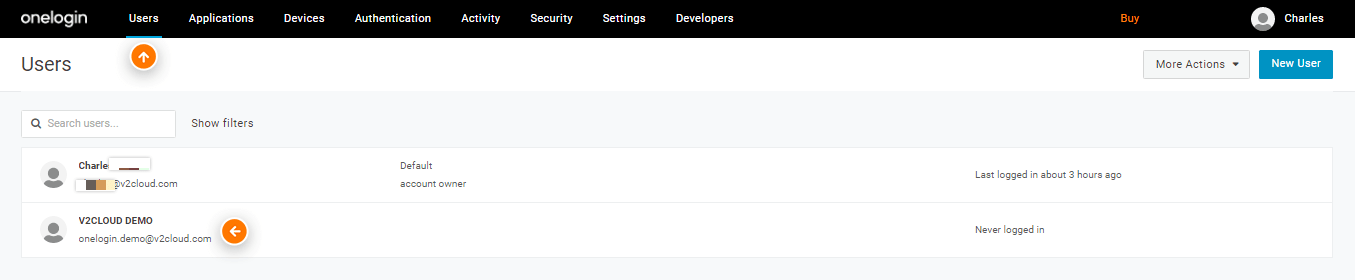

Navigate to the Users tab and select New User

Background ImageBackground Image

STEP 2

Enter The information and check Active. You can then click on Save User.

Background Image

STEP 3

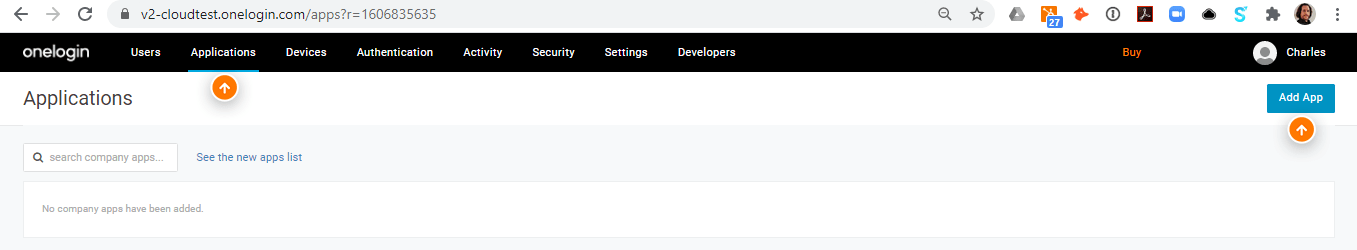

Go to the Applications tab and select Add App.

Background Image

STEP 4

Search for SAML, and select SAML Test Connector.

Background Image

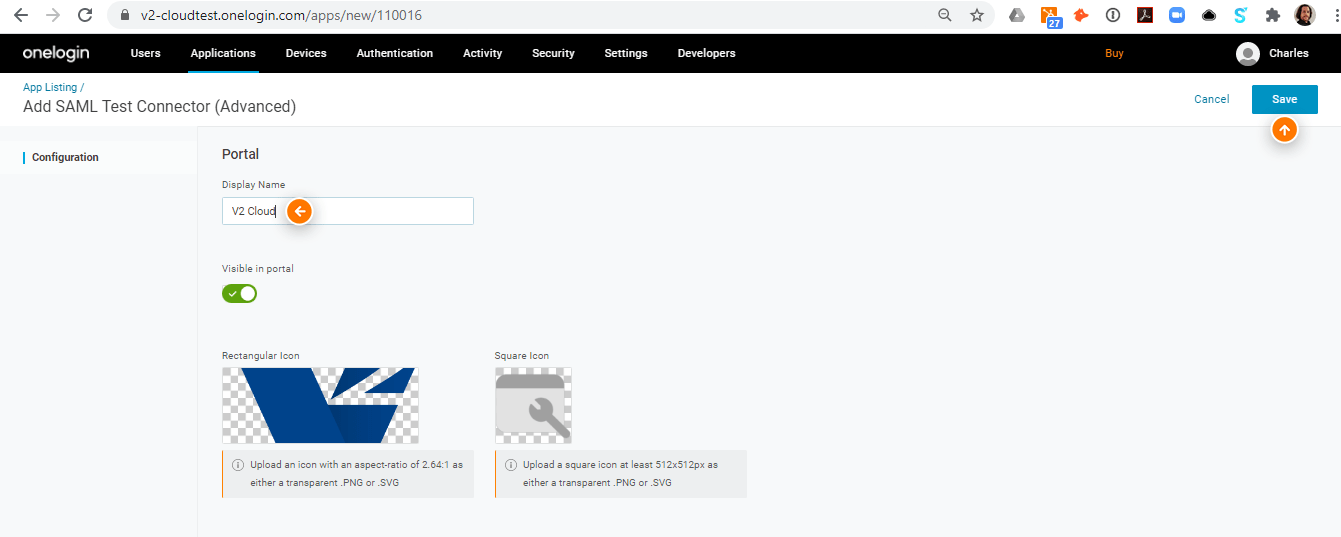

STEP 5

Change the name to V2 Cloud and change the logo (optional) and then select Save.

Background Image

STEP 6

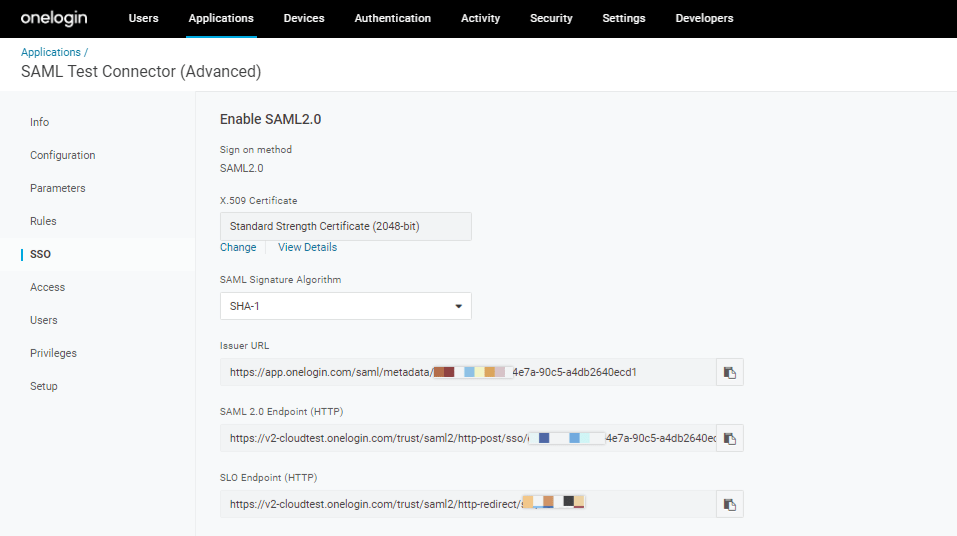

Go to the SSO page and keep it open.

Background Image

STEP 7

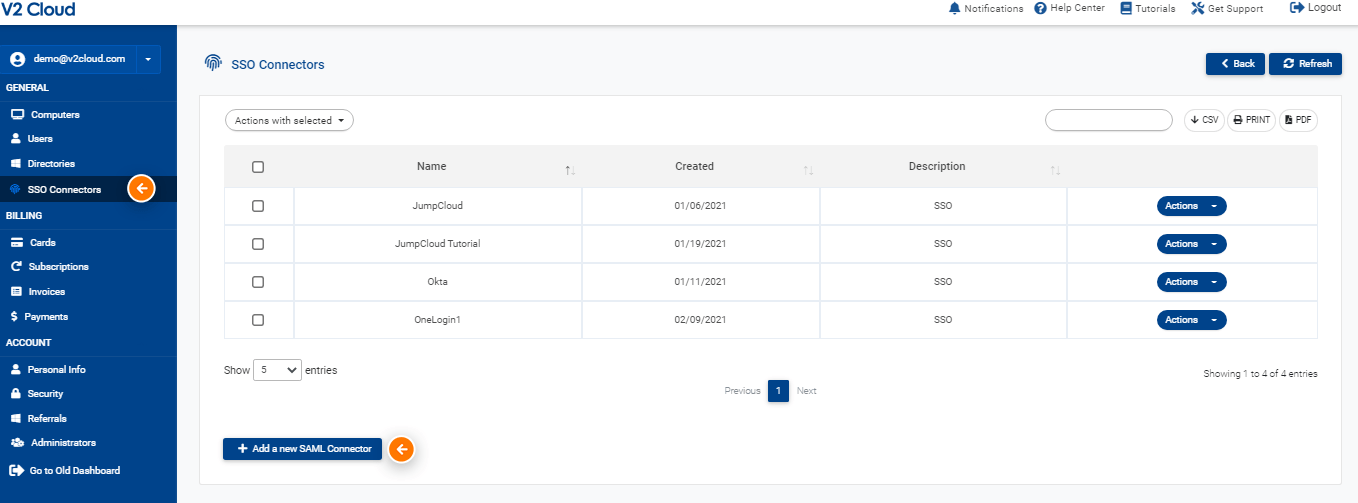

Go to your Dashboard under the SSO Connectors tab and then Configure a new identity provider.

Background Image

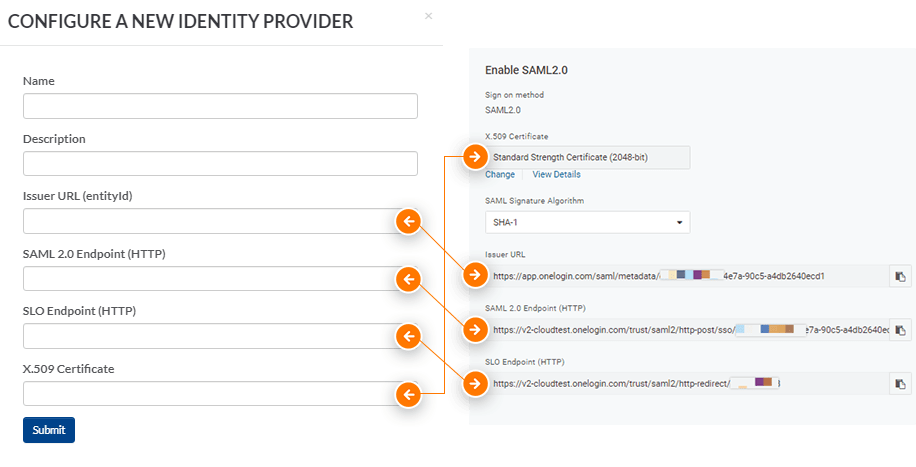

STEP 8

Fill out the information with the open window from STEP 6 as shown below. Click on View details under Certificate to be able to copy it. You have to copy all the text.

Background Image

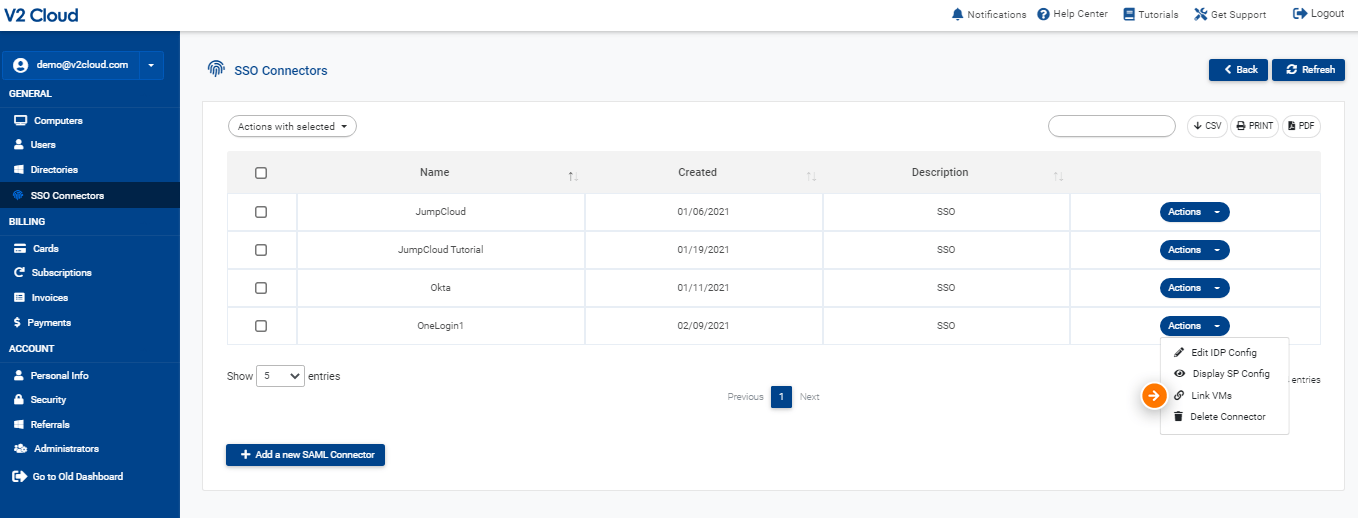

STEP 9

Select the Action button and select Link VMs, and then select the VM you want.

Background Image

STEP 10

Go back to OneLogin to assign the V2 Cloud app you created to the right users. Select the Users tab and click on the user you want to connect.

Background Image

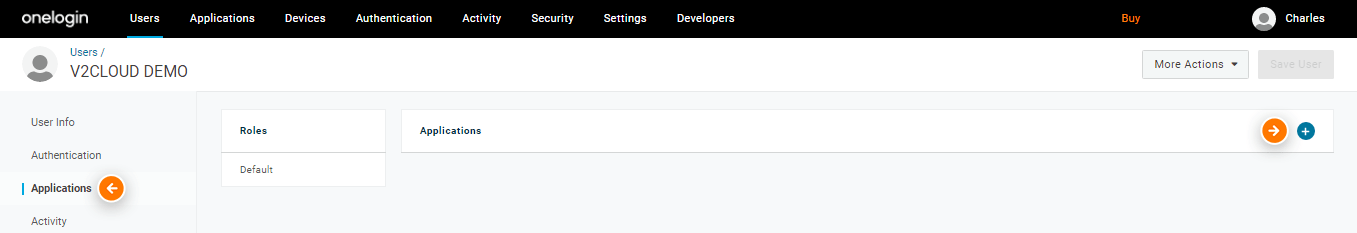

STEP 11

Go to the Applications tab and select + .

Background ImageBackground Image

STEP 12

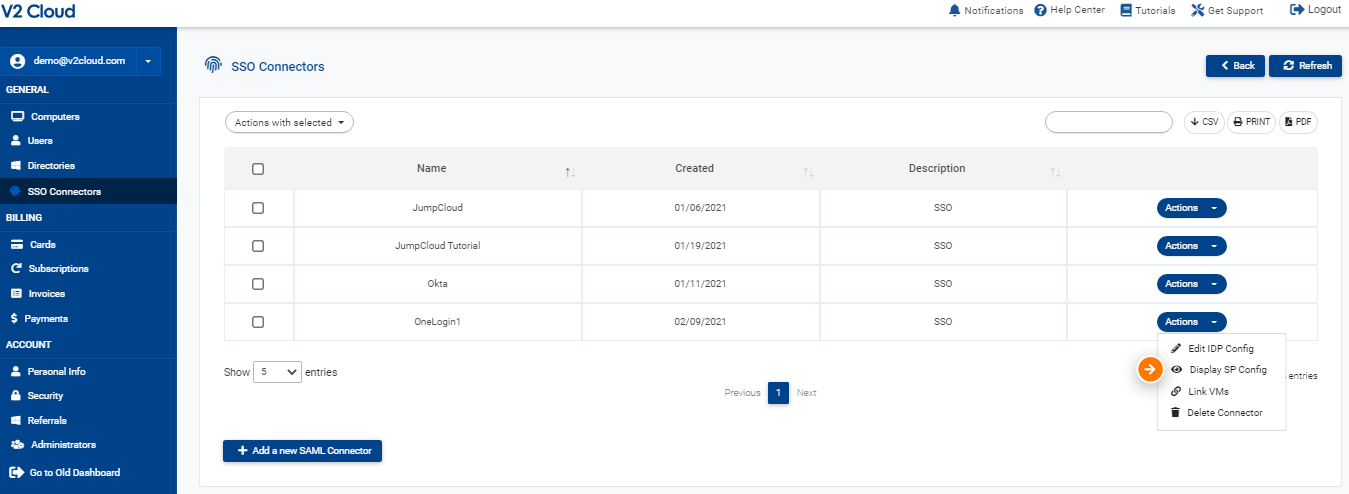

Go back to your V2 Cloud dashboard under SSO Connectors – Action – Display SP config and keep the window open.

Background Image

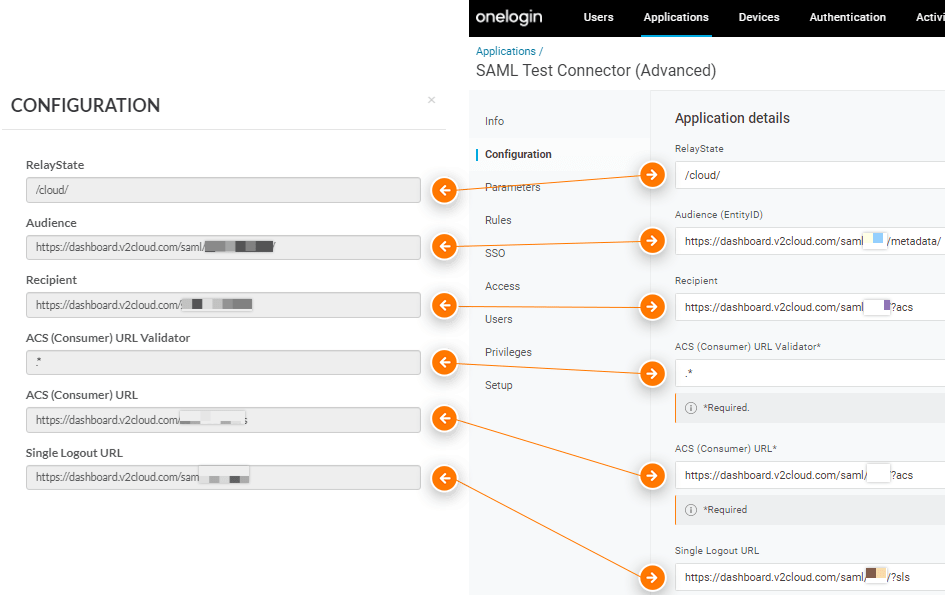

STEP 13

Go back to OneLogin under Applications – choose your app – Configuration and fill out the information with the window from STEP 12.

Background Image

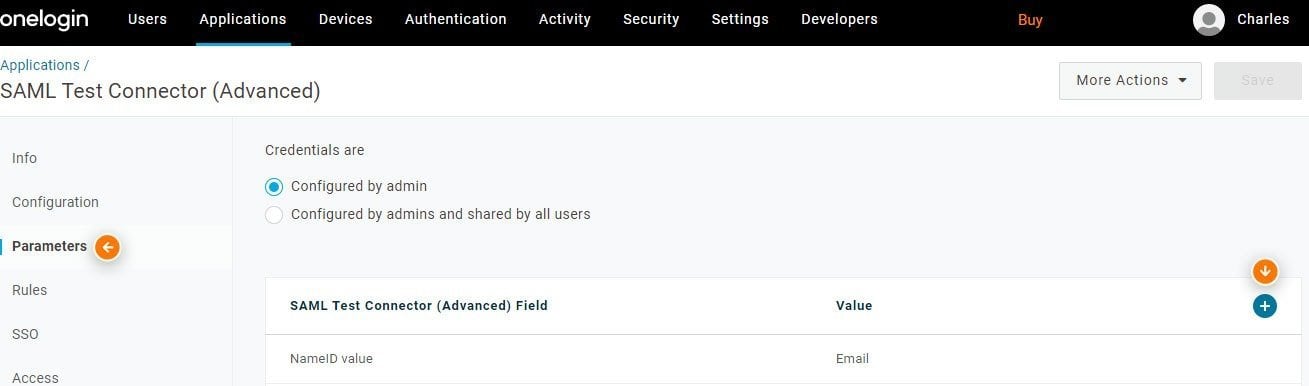

STEP 14

Go to Parameter on the left sidebar and click on the + (PLUS). Enter sp_name in the attribute, select – No default – and check Include in SAML assertion. Click Save.

Background Image

STEP 15

In your administrator session in V2 Cloud; open Control Panel and go to System. Select Advanced network setting and go to Remote. Uncheck the last option to disable Network Level Authentication.

Background ImageBackground Image

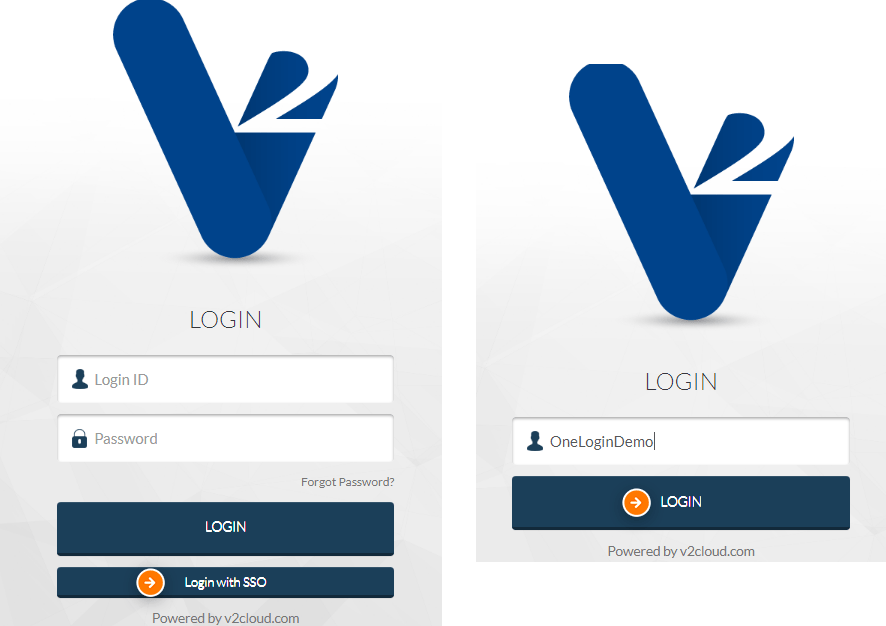

STEP 16

Select Login with SSO in V2 Cloud to test it and you are done. Enter your full user email from OneLogin.

Background Image

Done! You can now use OneLogin to connect to V2 Cloud.
